Nakon recenzije Asusove X299 ploče, na red za test je došla i ASRockova Fatal1ty X299 Gaming K6 namijenjena novim Intelovim Core X procesorima. Baš kao i kod Asusa riječ je o ulaznom modelu u ponudi, pa su te dvije ploče i direktno usporedive. ASRockova donosi trostruki M.2 slot, Dual gigabitni LAN, USB 3.1, Creative Sound Blaster Cinema 3 softver, podršku za Optane tehnologiju, RGB LED osvjetljenje, Super Alloy dizajn 11-fazne VRM jedinice itd.

Kao što smo rekli, ovo je ulazni ASRockov X299 model i iznad njega su još tri ploče u trenutnoj ponudi – X299 Taichi (popularna Tajči), Fatal1ty X299 Professional gaming i9 i X299 Killer SLI/ac. Naš testni model dolazi u tower kutiji s ručkom na vrhu, a unutar nje je ploča zaštićena u debljoj crnoj kartonskoj kutiji. Na vanjskom se omotu mogu vidjeti svi detalji i sve tehnologije s kojima je ploča opremljena, pa kupac odmah može vidjeti ima li sve što on treba.

asrock_x299_k6_3 asrock_x299_k6_4

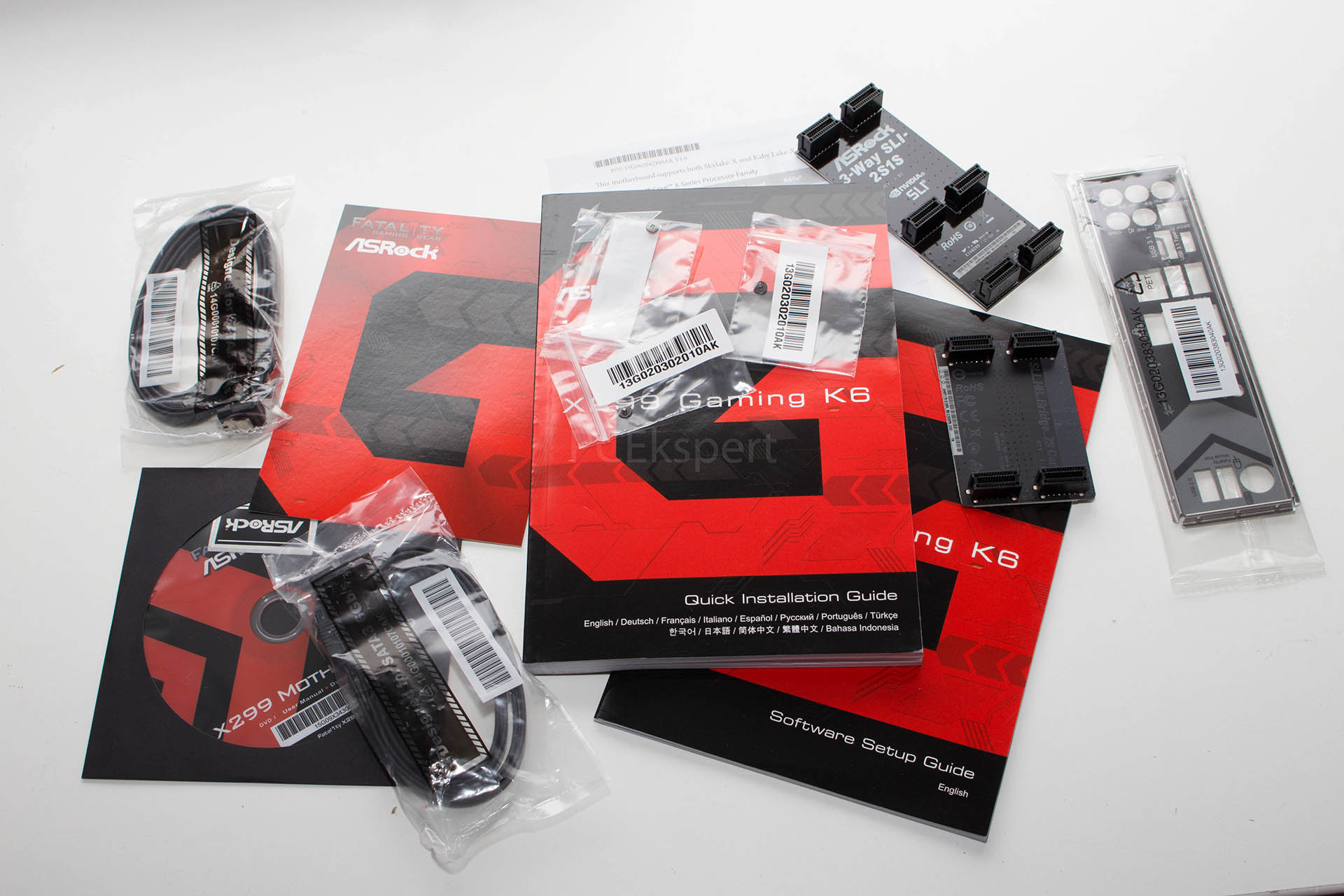

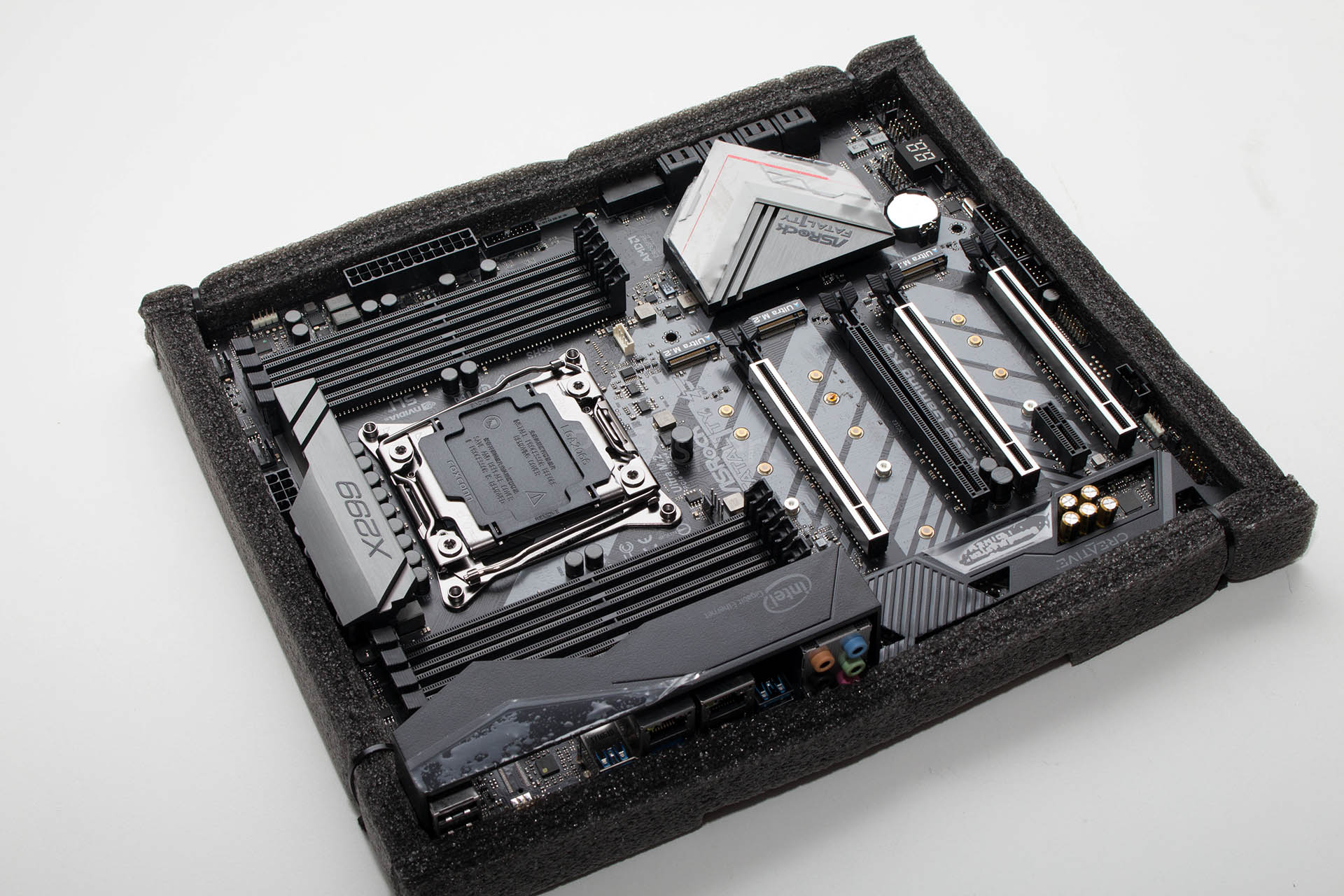

Bundle nije naročito bogat, te ASRock očito čuva bogatiju opremu za skuplje ploče. Sastoji se od dvije knjižice s uputstvima, naljepnice, medija s upravljačkim programima i aplikacijama, jednog 3-way i jednog 2-way SLI mostića, zaštite za stražnji I/O panel, četiri SATA kabela i tri vijka za M.2 sockete. Kao i obično, ASRock svoju ploču dodatno štiti u stiro-pjeni za koju je i pričvršćena plastičnim vezicama.

asrock_x299_k6_5

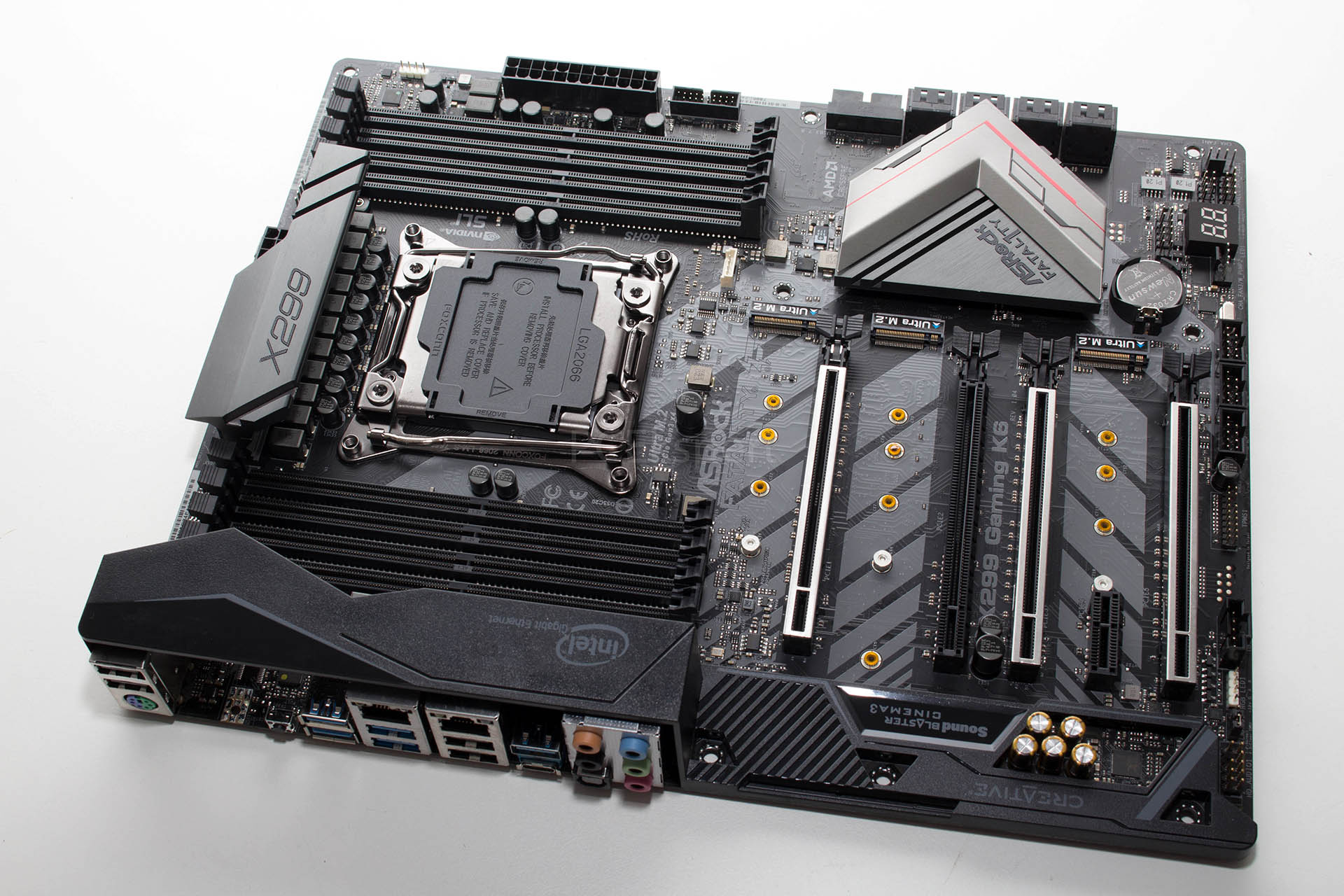

Ploča je standardnih ATX dimenzija i zapravo je vrlo čistog i jednostavnog dizajna. Mat crni je PCB prošaran sivom bojom, koja je naglašena na M.2 socketima i nadopunjuje vrh strelice na hladnjaku X299 čipseta. Konektori i utori s crni, s metalnim oklopima na tri PCIe utora koji razbijaju crne tonove. Hladnjaci su aluminijski, s gunmetal bojom, a zanimljivo je kako su nalijepljene izbočene X299 i ASRock Fatal1ty oznake na njima.

asrock_x299_k6_6

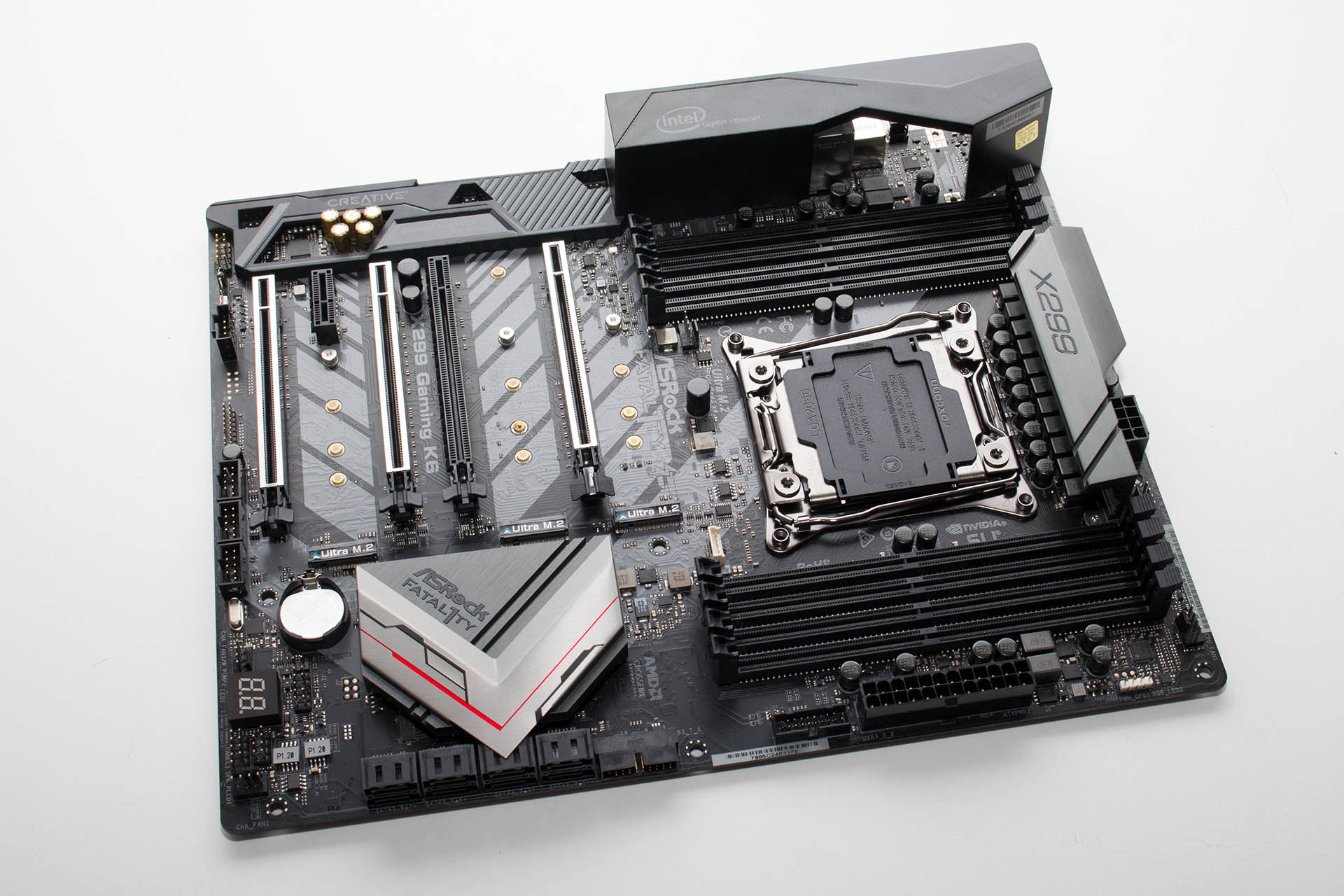

Layout je logičan i vrlo dobar, sa svim elementima posloženim tamo gdje trebaju biti. Jedino je možda bilo nepotrebno smjestiti horizontalno USB 3.0 konektor koji je odmah iznad SATA utora. Kabeli za USB 3.0 konektore u kućištima su dosta kruti pa je vertiklana orijentacija bolja, unatoč tome što kabel malo opstruira protok zraka. Sve ostalo je kako treba biti, a na ploči se nalazi i dovoljno 4-pinskih konektora za ventilatore – pet.

asrock_x299_k6_7

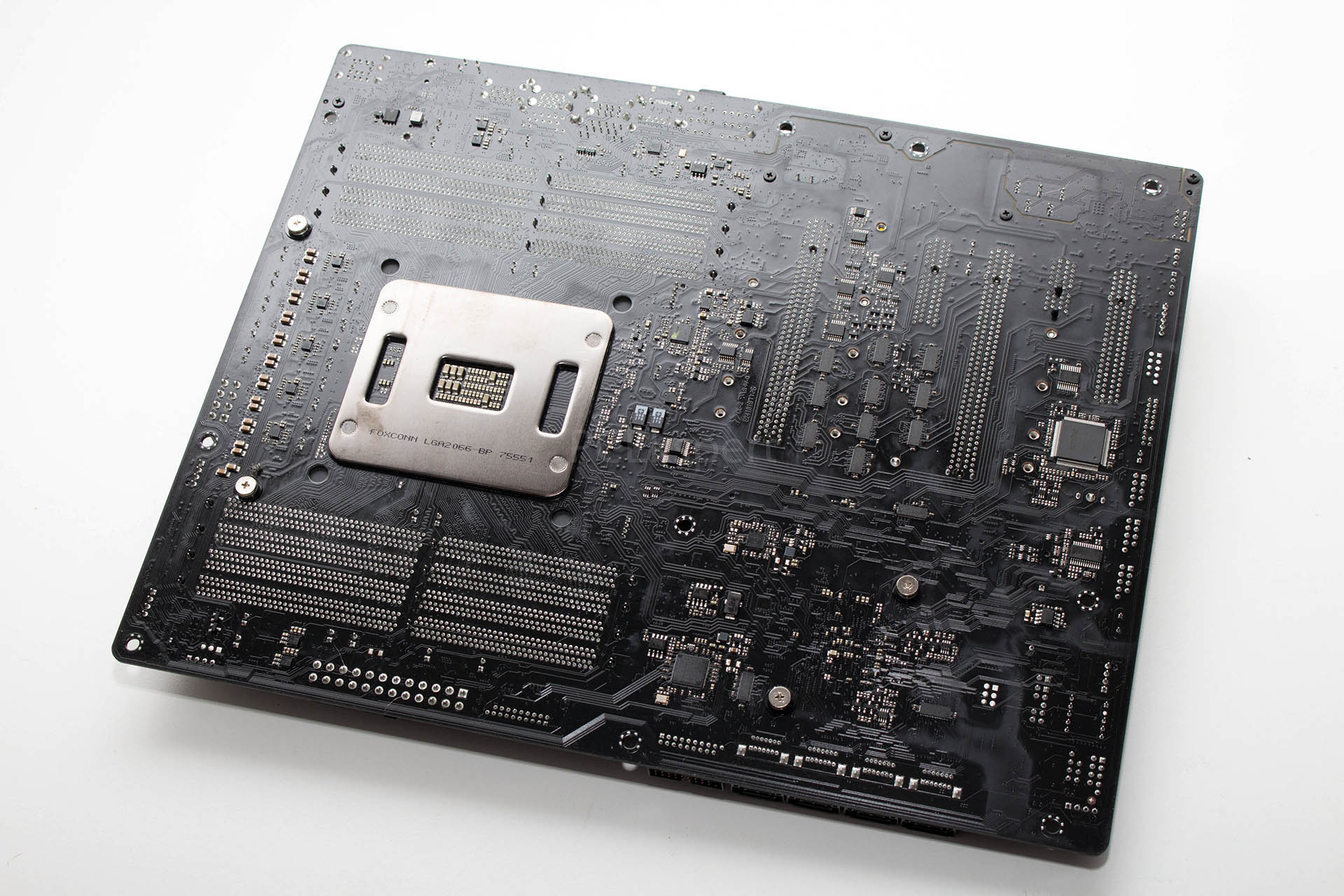

Zanimljivo, ASRock je dio elemenata odlučio prebaciti na donji dio ploče pa tu nalazimo Nuvotonov Super I/O kontroler i ASMedijn 1074 USB3.0 kontroler. Pločica koja je sastavni dio LGA2066 mehanizma je masivnije građe, a oba su hladnjaka na ploči za nju pričvršćena vijcima.

Specifikacije ASRock Fatal1ty X299 Gaming K6
Podržani
procesori 		– Supports Intel Core X-Series Processor Family for the LGA 2066 Socket
– Digi Power design
– 11 Power Phase design
– Supports Intel Turbo Boost Max Technology 3.0
– Supports ASRock Hyper BCLK Engine III
Čipset Intel X299
Memorija – Quad Channel DDR4 Memory Technology
– 8 x DDR4 DIMM Slots
– Supports DDR4 4400+(OC)/2133 non-ECC, un-buffered memory
– Supports non-ECC RDIMM (Registered DIMM)
– Max. capacity of system memory: 128GB
– Supports Intel Extreme Memory Profile (XMP) 2.0
– 15μ Gold Contact in DIMM Slots
Utori
za proširenja		 – 4 x PCI Express 3.0 x16 Slots
– 1 x PCI Express 3.0 x1 Slot
– 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE3)
Multi-VGA
podrška
– Supports AMD Quad CrossFireX, 3-Way CrossFireX and CrossFireX
– Supports NVIDIA Quad SLI, 3-Way SLI and SLI
LAN
 – Gigabit LAN 10/100/1000 Mb/s
– 1 x Giga PHY Intel I219V, 1 x GigaLAN Intel I211AT
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE
Audio – 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
– Premium Blu-ray Audio support
– Supports Surge Protection
– Nichicon Fine Gold Series Audio Caps
– 120dB SNR DAC with Differential Amplifier
– TI NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
– Pure Power-In
– Direct Drive Technology
– PCB Isolate Shielding
– Impedance Sensing on Front Out port
– Individual PCB Layers for R/L Audio Channel
– 15μ Gold Audio Connector
– Supports Creative Sound Blaster Cinema 3
Storage – 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 15 and Intel Smart Response Technology), NCQ, AHCI and Hot Plug
– 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
– 2 x Ultra M.2 Sockets (M2_1 and M2_3), support M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
USB
 ASRock USB 3.1 Gen2
– ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s)
– ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s)
BIOS – 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)
– Supports Secure Backup UEFI Technology
– ACPI 6.1 Compliant wake up events
– SMBIOS 3.0 Support
– CPU, DRAM, VPPM, VTTM, PCH 1.0V, VCCMPHY, VCCIO, VCCST, VCCSA, VCCSFR, VCCPLL, CLK VDD, PEGRCOMP Voltage Multi-adjustment
Format
– ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
– 8 Layer PCB
Interni I/O portovi – 1 x Virtual RAID On CPU Header
– 1 x TPM Header
– 1 x Power LED and Speaker Header
– 2 x RGB LED Headers
– 1 x CPU Fan Connector (4-pin)
– 1 x CPU Optional/Water Pump Fan Connector (4-pin)
– 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
– 1 x Chassis Optional/Water Pump Fan Connector (4-pin)
– 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
– 1 x Thunderbolt AIC Connector (5-pin)
– 3 x USB 2.0 Headers (Support 6 USB 2.0 ports) (Supports ESD Protection)
– 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (ASMedia ASM1074 Hub) (Supports ESD Protection)
– 1 x Dr. Debug with LED
Jedinstvene značajke
Power
– Hi-Density Power Connectors (24 pin and 8 pin)
– Dr. MOS
Memory
– 15μ Gold Contact in DIMM Slots
VGA Card
– 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE3)
Cooling
– XXL Aluminum Alloy Heatsink
– 8 Layer PCB
Audio
– Creative Sound Blaster Cinema 3
ASRock Super Alloy
– XXL Aluminum Alloy Heatsink
– Premium 60A Power Choke
– Dr. MOS
– Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
– I/O Armor
– Matte Black PCB
– High Density Glass Fabric PCB
ASRock Steel Slots
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
