ASUS ROG Maximus XI Formula recenzija

· Krešimir Matanović · MBO i RAM · Stranica 1 od 5
Vrijeme je za test jedanaeste verzije Asusove Maximus Formula ploče koja je kao i obično namijenjena entuzijastima i graditeljima open loop sistema vodenih hlađenja. Ovogodišnji model, opremljen sa Z390 čipsetom, osim nativnih USB 3.1 utora, donosi i 5-gigabitnu mrežu, bolji WiFi adapter, novi dizajn pokrova s RGB LED osvjetljenjem, veći OLED ekran, šest USB 3.1 Gen 2 portova itd. Standardno, tu je i EKWB-ov vodeni blok na napojnoj jedinici koji možemo integrirati u open-loop sistem za bolje hlađenje.

ROG Maximus XI Formula – prvi dio

asus_maximus_XI_formula_1
asus_maximus_XI_formula_2

Vrijeme je za test jedanaeste verzije Asusove Maximus Formula ploče koja je kao i obično namijenjena entuzijastima i graditeljima open loop sistema vodenih hlađenja. Ovogodišnji model, opremljen sa Z390 čipsetom, osim nativnih USB 3.1 utora, donosi i 5-gigabitnu mrežu, bolji WiFi adapter, novi dizajn pokrova s RGB LED osvjetljenjem, veći OLED ekran, šest USB 3.1 Gen 2 portova itd. Standardno, tu je i EKWB-ov vodeni blok na napojnoj jedinici koji možemo integrirati u open-loop sistem za bolje hlađenje.

asus_maximus_XI_formula_3
asus_maximus_XI_formula_4

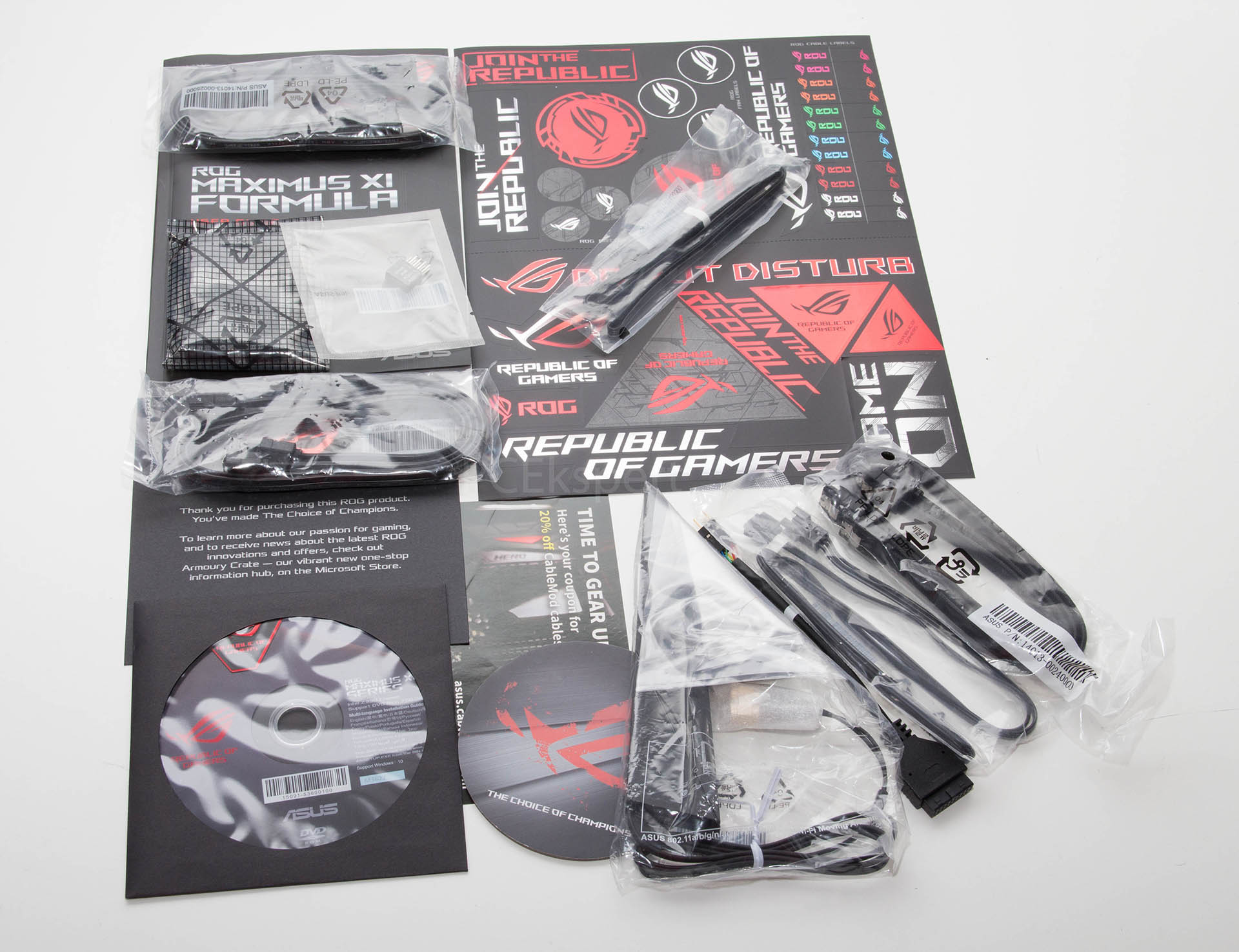

Ploča dolazi u klasičnom ROG pakiranju. Kutija ima otklopnu gornju stranicu ispod koje se nalazi ploča u zasebnom kartonskom ležištu i pokrivena prozirnom plastikom. U pregradi niže se smjestio bundle koji se sastoji od:
  • User’s manual
  • 1 x ROG logo plate sticker
  • 1 x 2-Way SLI bridge
  • 4 x SATA 6Gb/s cables
  • 1 x M.2 Screw Package
  • 1 x Supporting DVD
  • 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
  • 1 x Q-Connector
  • 1 x Extension Cable for RGB strips (80 cm)
  • 1 x Extension cable for Addressable LED
  • 1 x Thermistor cable
  • 1 x ROG coaster
  • 1 x USB 3.1 Gen 1 Header to USB 2.0 adapter cable
  • 2 x ROG weave SATA 6G cable
  • 1 x ROG Thank you card

asus_maximus_XI_formula_5

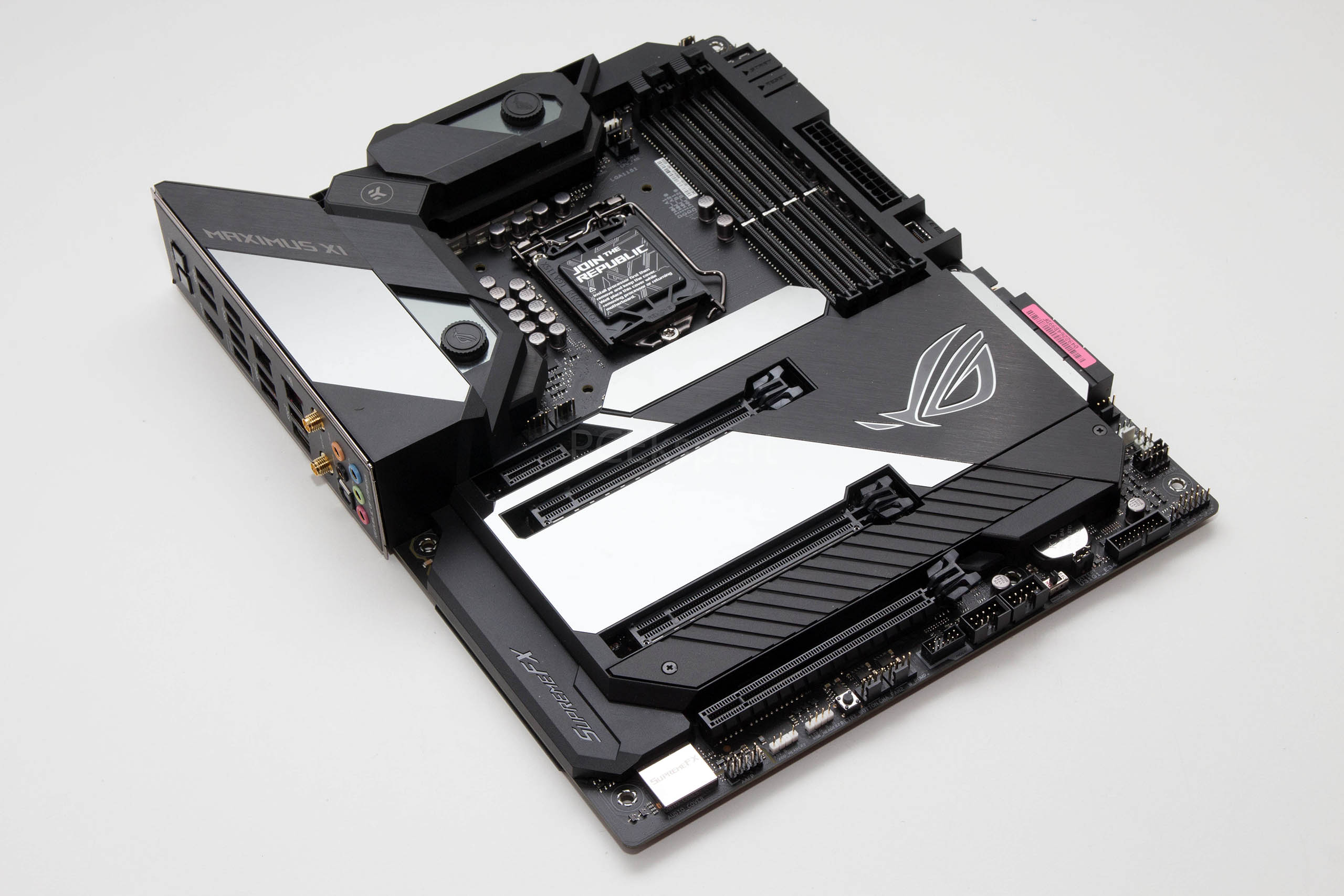

Ploča je standardnih ATX dimenzija i izgledom je evoluirala u odnosu na desetku, tj. model sa Z370 čipsetom. Tu ploču nismo imali prilike testirati, a zadnja Formula koju jesmo je bila devetka. Nova je ploča “ušminkana” prozirnim plastičnim elementima ispod kojih je RGB LED rasvjeta, a nema više onih za ROG karakterističnih crvenih elemenata. Sada ju zacrveniti mogu samo LED-ice. Crno-srebrni tonovi ju čine vrlo elegantnom i lijepo će se uklopiti uz sav ostali moderan hardver u kućištu.

asus_maximus_XI_formula_6

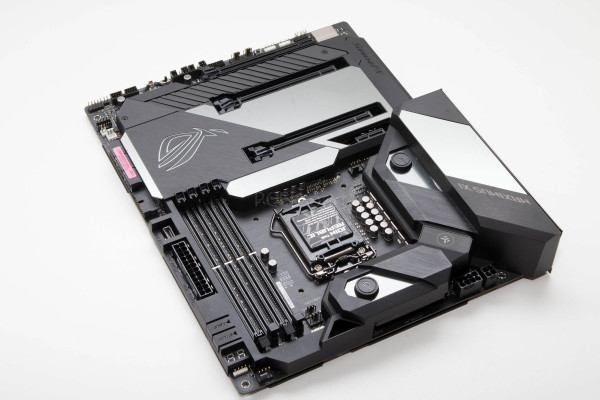

Layout je vrlo dobar, premda je jedan dobar dio ploče pokriven. No, svi bitni konektori su tamo gdje trebaju biti, uz rubove, SATA portovi su horizontalni, a i M.2 portovi su dobro smješteni. Hladnjak na čipsetu je vrlo masivan i dobro uklopljen u ostatak plastičnog pokrova. Svoj posao odrađuje vrlo dobro i pri najvećim opterećenjima ostaje samo blago topal. Hladnjak na napojnoj jedinici je vrlo masivan, riječ je jasno o EKWB CrossChill EK III vodenom bloku koji je spreman za integraciju u open loop sistem vodenog hlađenja sa 1/4″ spojevima. Na ovaj smo se dizajn već ranije navikli, a osim uz pomoć vode, ovaj bakreni hladnjak dobro hladi i ovakav kakav je, pasivan. Ploča inače ima i četiri senzora temperature, te 4-pinske konektore za ventilatore i vodene pumpe.

asus_maximus_XI_formula_7

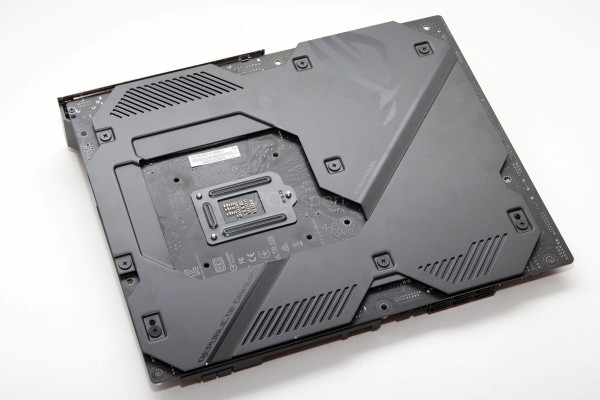

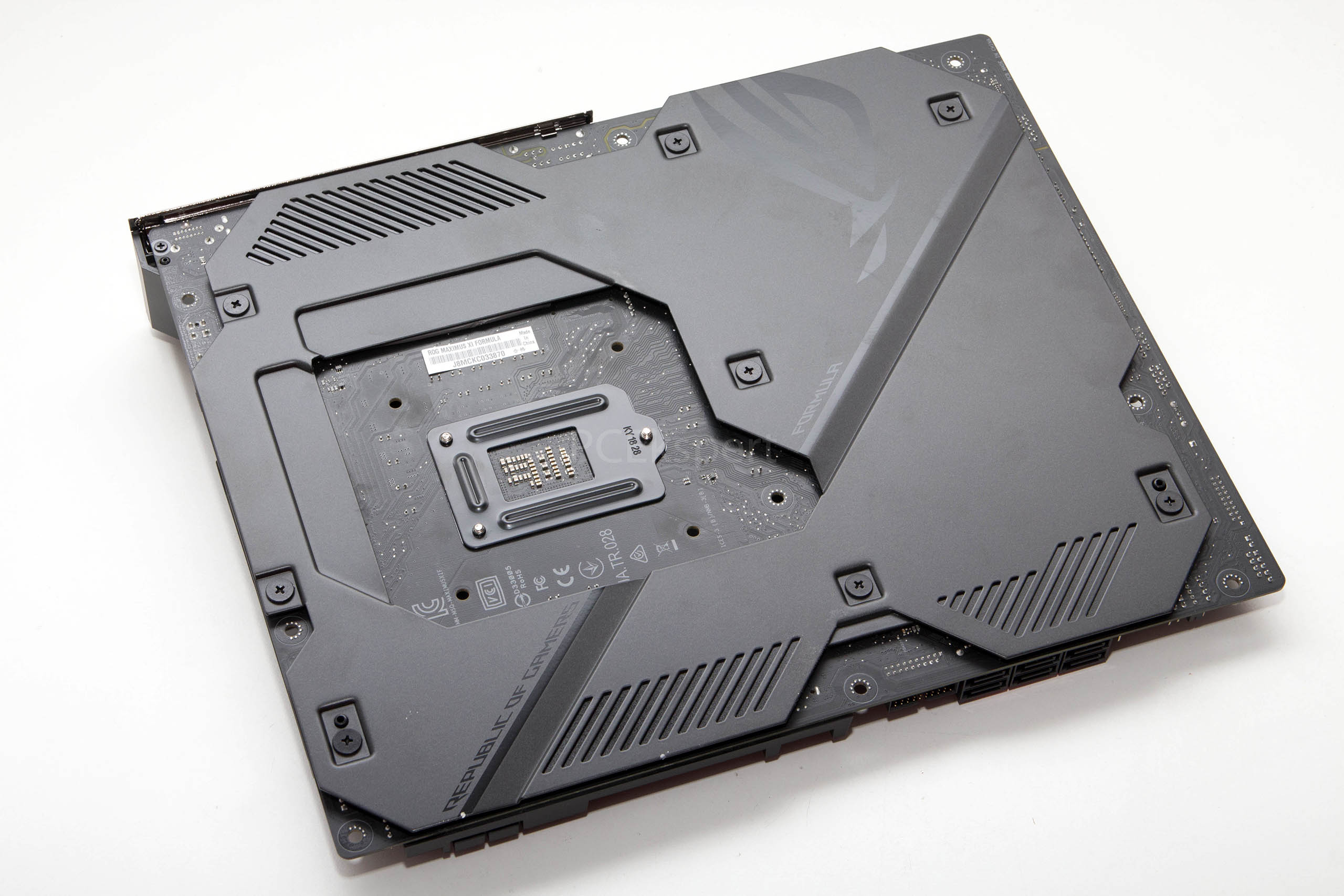

S donje strane je većim dijelom pokrivena metalnom pločom koja učvršćuje čitavu konstrukciju, tj. služi kao nosač za gornji dio pokrova. Uz to, dobar je i vodič topline.
Specifikacije ASUS Maximus XI Formula
Podržani procesori Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0
Čipset Intel Z390
Memorija 4 x DIMM, Max. 64GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)
Utori za proširenja Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors 2 x PCIe 3.0 x16 (x16, x8/x8, or x8/x4+x4) Intel® Z390 Chipset 1 x PCIe 3.0 x16 (max at x4 mode) * 1 x PCIe 3.0 x16
Grafika i video Integrated Graphics Processor- Intel® UHD Graphics support VGA output support : HDMI port – Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 30 HzSupports NVIDIA® 2-Way SLI™ Technology Supports AMD 3-Way CrossFireX™ Technology
LAN, WLAN i Bluetooth Aquantia AQC111C 5G LAN Intel® I219V Anti-surge LANGuard ROG GameFirst V TechnologyIntel® Wireless-AC 9560 Wi-Fi 802.11 b/g/n/ac Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160Bluetooth® 5.0
Audio ROG SupremeFX 8-Channel High Definition Audio CODEC S1220 – Impedance sense for front and rear headphone outputs – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input – SupremeFX Shielding Technology – ESS® ES9023P – Supports up to 32-Bit/192kHz playback *3 Audio Feature : – Optical S/PDIF out port(s) at back panel
Storage
Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Intel® Optane™ Memory Ready
USB
Intel® Z390 Chipset : 1 x USB 3.1 Gen 2 front panel connector port(s) Intel® Z390 Chipset : 4 x USB 3.1 Gen 2 port(s) Intel® Z390 Chipset : 8 x USB 3.1 Gen 1 port(s) Intel® Z390 Chipset : 4 x USB 2.0 port(s) ASMedia® USB 3.1 Gen 1 controller : 2 x USB 3.1 Gen 1 port(s)
BIOS 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1
Format ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Interni I/O portovi 2 x Aura Addressable Strip Header(s) 2 x Aura RGB Strip Headers 2 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 1 x Chassis Fan connector(s) 1 x Optional Fan connector(s) 1 x AIO_PUMP connector 1 x H_AMP fan connector 1 x W_PUMP+ connector 1 x 4-pin EATX 12 V Power connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x MemOK! II switch(es) 1 x Thermal sensor connector(s) 1 x Node Connector(s) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x ReTry button 1 x System panel connector 1 x T_Sensor Connector 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x USB 3.1 Gen 2 front panel connector 2 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x Start button 1 x Reset button 1 x Q-Code
Jedinstvene i ROG značajke 5-Way Optimization by Dual Intelligent Processors 5 – 5-way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance,and Turbo app 2 ” LiveDash AURA : – Aura Lighting Control – Aura RGB Strip Headers – Aura Lighting Effects Synchronization with compatible ASUS ROG devices – Aura Addressable Strip Header(s) ASUS Exclusive Features : – USB BIOS Flashback – MemOK! II – AI Suite 3 – Ai Charger – ASUS CrashFree BIOS 3 – Armoury Crate – Pre-mounted I/O Shield – ASUS NODE: hardware control interface – OptiMem II – ASUS EZ Flash 3 – ASUS C.P.R.(CPU Parameter Recall) – BUPDATER – BIOS Flashback Button – Clear CMOS Button – Reset Button ASUS Q-Design : – ASUS Q-Code – ASUS Q-LED (CPU, VGA, Boot Device LED) – ASUS Q-DIMM – ASUS Q-ConnectorROG RGB Armor ReTry Button Start Button Extreme Engine Digi+ : – MicroFine Alloy Chokes – 10K Black Metallic Capacitors Extreme Tweaker Crosschill EK III ROG Patented Pre-mounted I/O Shield ROG Exclusive Software – Mem Tweakit – RAMCache III – RAMDisk – CPU-Z – GameFirst V – Sonic Studio III + Sonic Studio Link – Sonic Radar III
